IGBT
IGBT产品
| Image | Part Number | Datasheet | Voltage | Id | Package | Configuration | SPICE |
 |

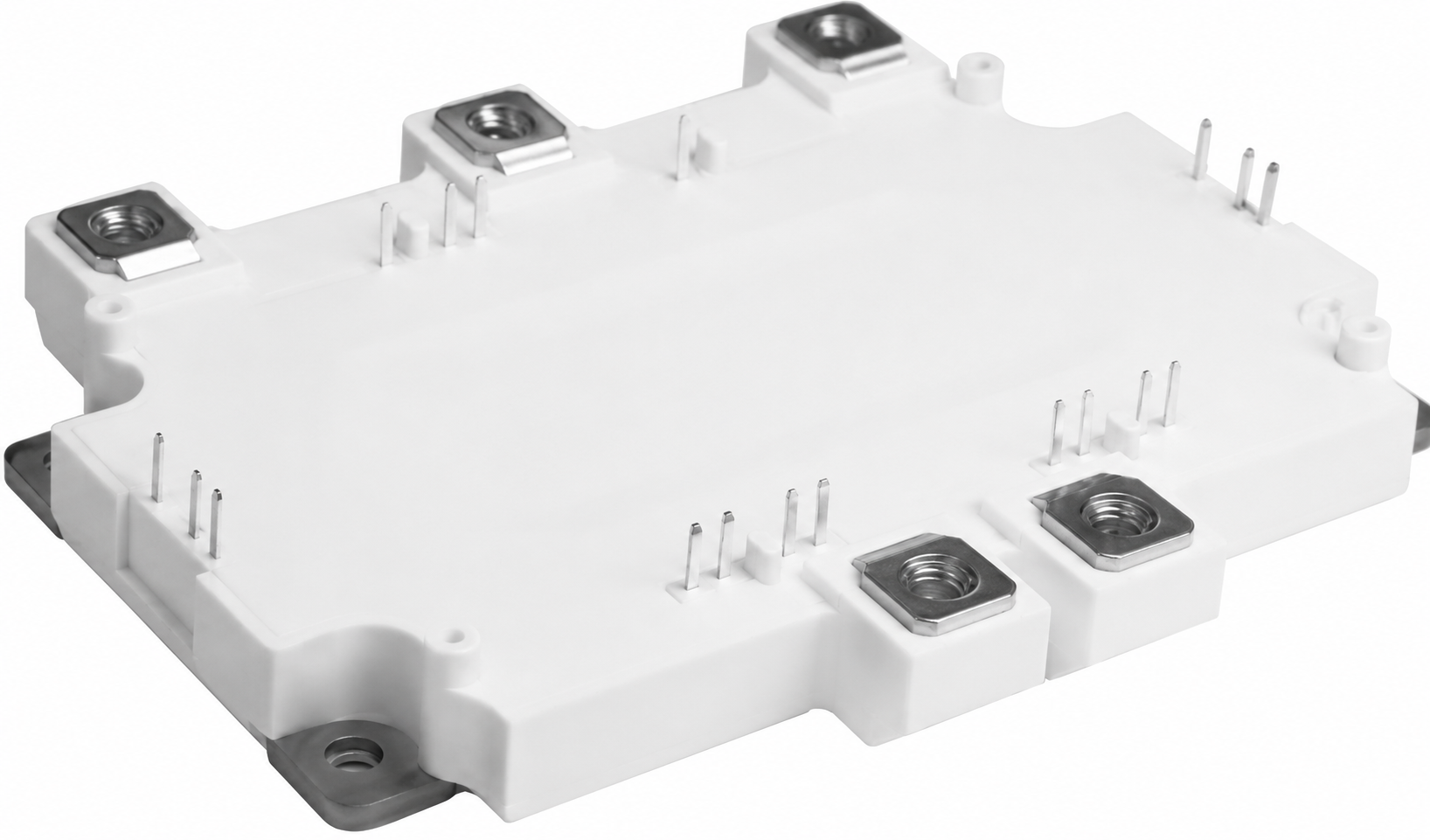

QX400FS65HP1 | 650V | 400A | HP1 | 3-Phase | SPICE | |
 |

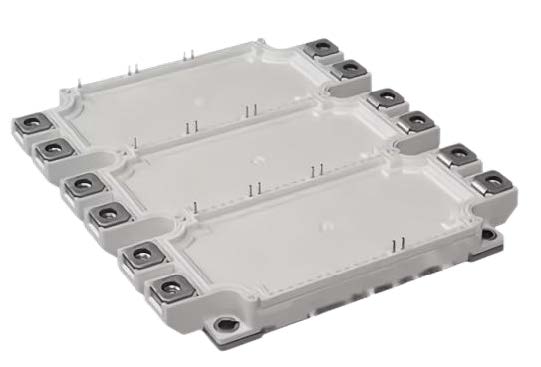

ED450X12T4A
|
1200V |
450A |
ED3 |
Half bridge |
SPICE | |
|
ED600X12T4A |
1200V |
600A |
ED3 |
Half bridge |
SPICE | |
|
ED900X12T4A |
1200V |
900A |
ED3 |
Half bridge |
SPICE | |
 |
H3ED450HB17T4 | 1700V | 450A | ED_Combo | 6 in one | SPICE | |
 |

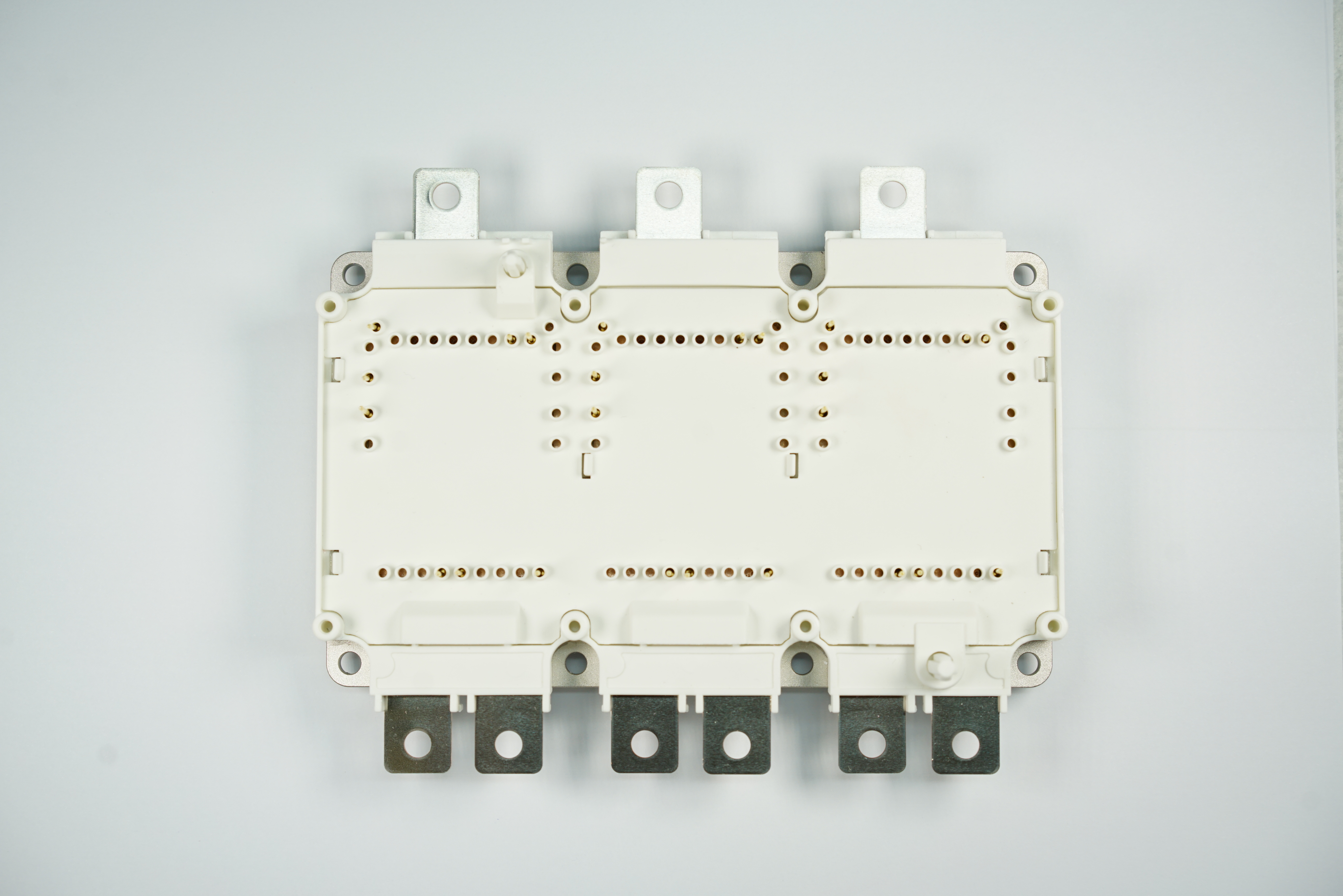

HP820FS75 | 750V | 820A | HPD | 3-Phase | SPICE | |
|
HP950FS75 | 750V | 950A | HPD | 3-Phase | SPICE | |
|
HP450FS12 |
1200V |
450A |
HPD |
3-Phase |
SPICE | |
|
HP600FS12 |
1200V |
600A |
HPD |
3-Phase |
SPICE | |
 |
QX150HB12C2U | 1200V | 100A | 34mm | HB, Low Eoff | SPICE | |
|
QX150HB12C2U | 1200V | 150A | 34mm | HB, Low Eoff | SPICE | |
 |
QX200HB12C1U | 1200V | 300A | 62mm | HB, Low Eoff | SPICE | |
|
QX300HB12C1U | 1200V | 300A | 62mm | HB, Low Eoff | SPICE | |
|
QX300HB12C1 | 1200V | 300A | 62mm | Half Bridge | SPICE | |
|
QX450HB12C1 | 1200V | 450A | 62mm | Half Bridge | SPICE | |
|
QX600HB12C1 | 1200V | 600A | 62mm | Half Bridge | SPICE | |
 |
QX100FS12P3 | 1200V | 100A | PIM3 | 3-Phase | SPICE | |
|
QX150FS12P3 | 1200V | 150A | PIM3 | 3-Phase | SPICE | |
|
QX200FS12P3 | 1200V | 200A | PIM3 | 3-Phase | SPICE | |
|
ED450X17T4A | 1700V | 450A | ED3 | Half Bridge | SPICE | |
|
ED600X17T7A | 1700V | 600A | ED3 | Half Bridge | SPICE | |
|
ED900X17T7A | 1700V | 900A | ED3 | Half Bridge | SPICE | |
|
QX200HB17C1 | 1700V | 200A | 62mm | Half Bridge | SPICE | |
|
QX300HB17C1 | 1700V | 300A | 62mm | Half Bridge | SPICE | |
|
QX500HB17C1 | 1700V | 500A | 62mm | Half Bridge | SPICE | |
 |

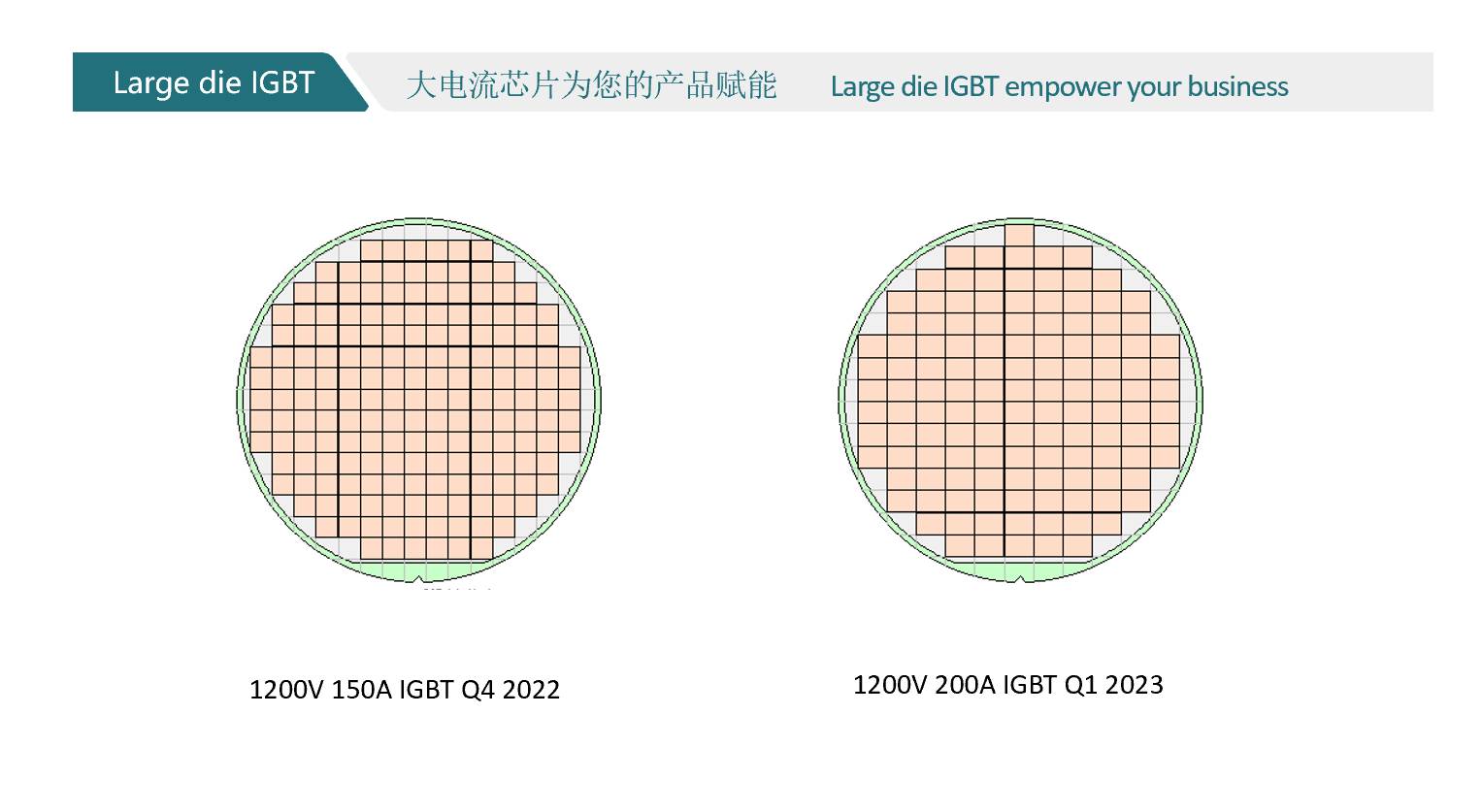

QX150T12 | 1200V | 150A | Bare Die | |||
|
QX150T12U | 1200V | 150A | Bare Die | |||
|
QX200T10 | 1000V | 200A | Bare Die | |||
|
QX200T10U | 1000V | 200A | Bare Die | |||
|
QX200T12 |
1200V |
200A |
Bare Die |
